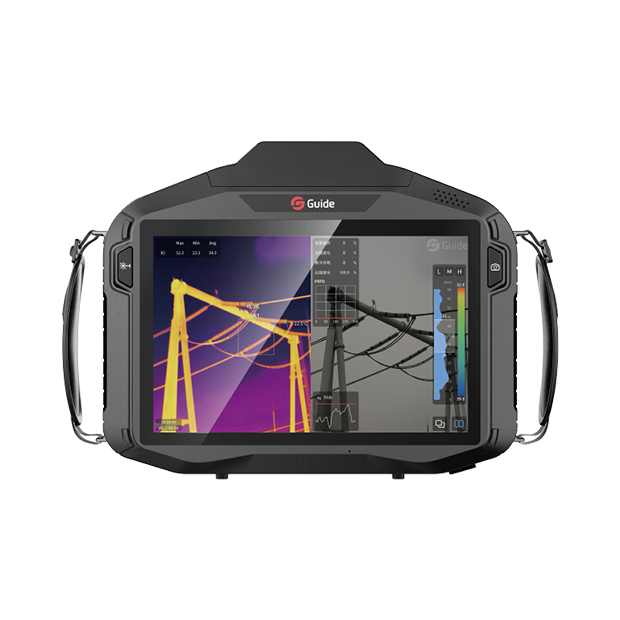

It features 128 high-precision microphones, a 640×512 infrared detector, an ultra-large 10.1-inch touchscreen, and the internal and external battery solution. The FA Series is designed to quickly detect temperature anomalies, locate gas leaks and identify partial discharge, offering efficient detection solutions for industries such as power, manufacturing, and petrochemicals.
128 low-noise MEMS microphonesMicrophone array
0 kHz to 65 kHz, Adjustable rangeBandwidth
10.1'' LCD, touch screen, 1920×1200Display screen
640×512@12μmInfrared resolution
Acoustic Fault Localisation

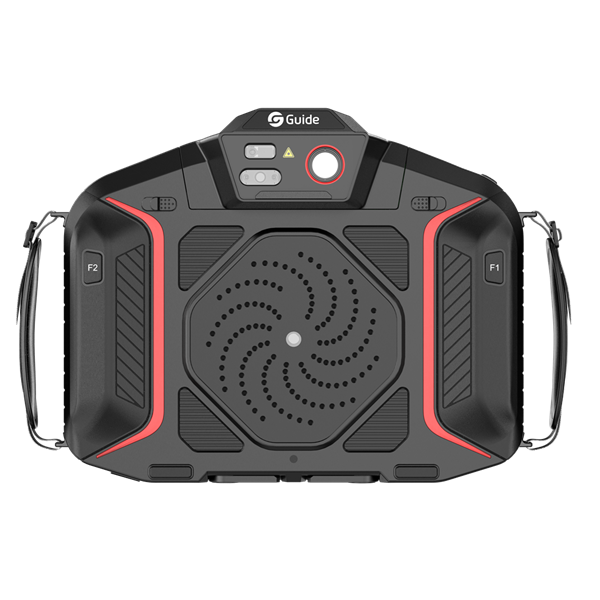

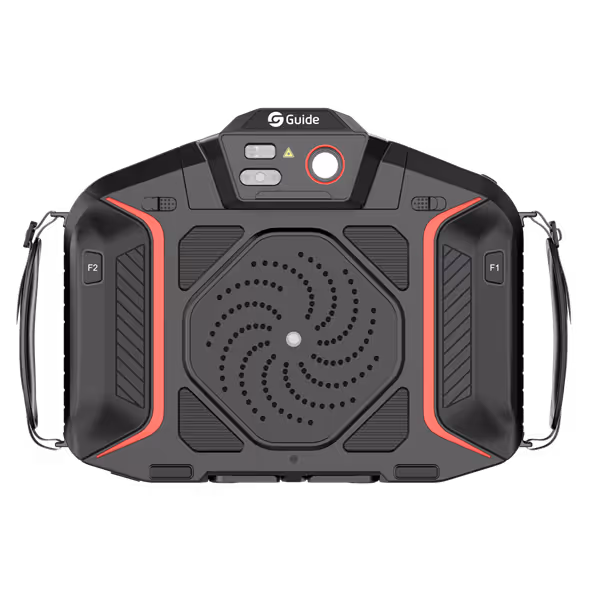

Equipped with 128 high-precision MEMS microphones in a spiral array, the FA Series delivers highly sensitive acoustic detection, accurately cap-turing sound sources for precise partial discharge and gas leak detection.
Abnormal Temperature Alarm
Equipped with a 640×512@12μm high-sensitivity infrared detector, FA Series responds quickly to temperature changes with high measurement accuracy. It can rapidly identify abnormal temperature areas and provide crystal-clear thermal imaging.

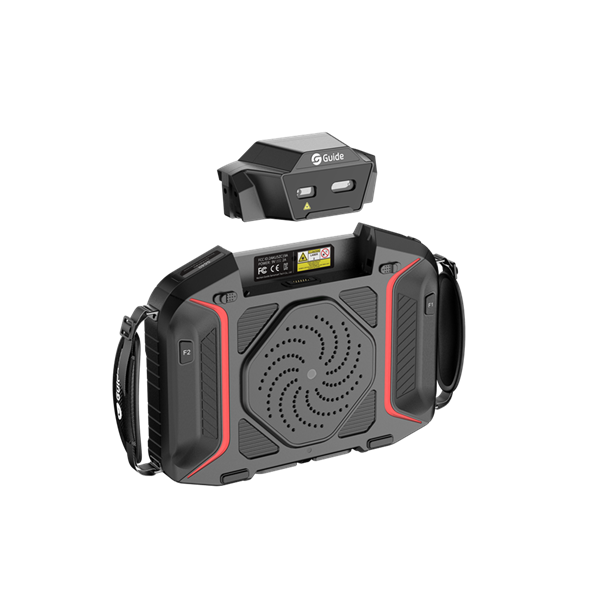

Modular Lens Design
The FA Series utilises an industry-first modular lens design that supports hot-swapping and multiple configurations. Users can easily swap function-specific modules, enhancing efficiency in inspection tasks.
