On-line dissolved gas analyser (DGA) for incipient and critical fault detection
Get the combined functionality of an incipient fault detector (H2) with a critical, arcing fault detector (C2H2) in one instrument
Provides actionable information on 2 key gases, saving more transformers from asset failure
Focus solely on acetylene, with no influence from other hydrocarbon gases, when performing measurements, giving you confidence in your critical event detection
Greater reliability, with no consumable components, results in a low cost of ownership

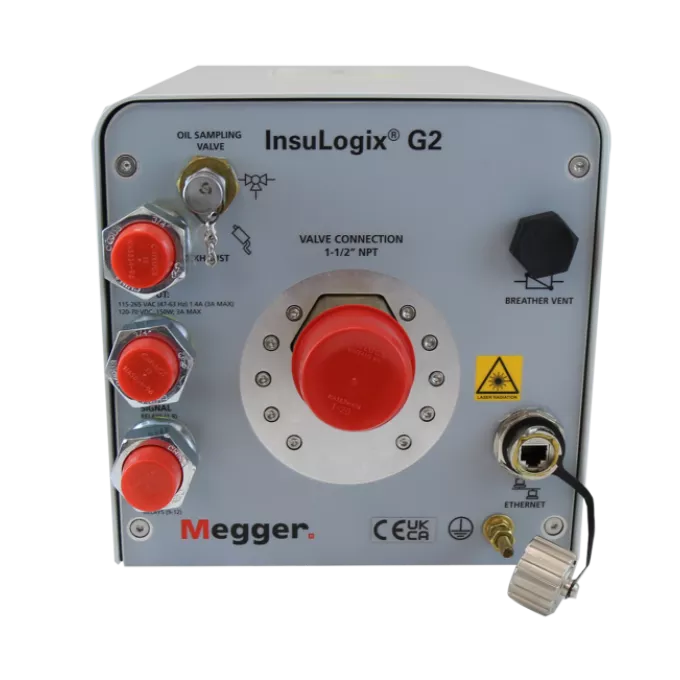

The InsuLogix® G2 acetylene, hydrogen, and moisture monitor combines early detection of incipient faults with critical fault detection in power transformers by measuring the presence of two key gases, hydrogen and acetylene, as well as moisture.
The single valve design uses state-of-the-art, self-calibrating laser sensor technology to detect acetylene (C2H2) gas as low as 0.5 ppm, providing an early indication of a critical fault condition within your asset. This allows for a confident, rapid response that is key to saving your transformers and preventing costly unplanned outages.

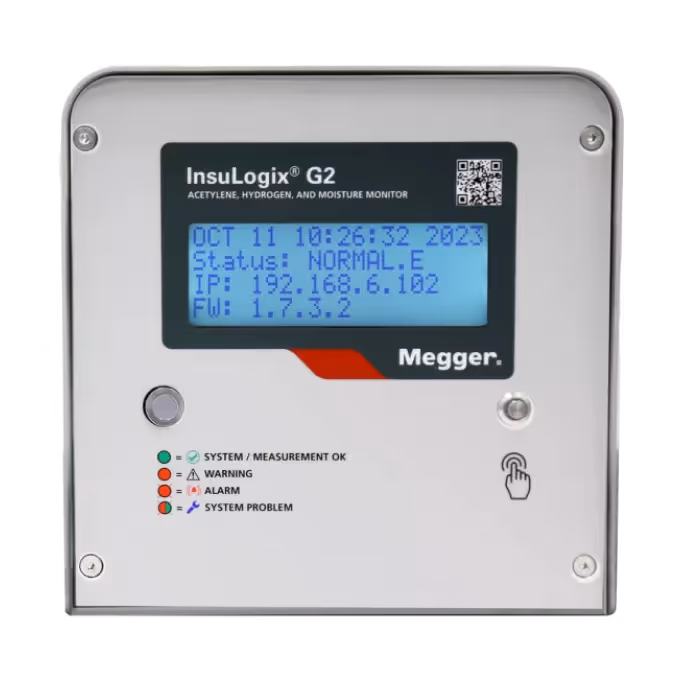

An intuitive, locally hosted web server user interface eliminates the need for extensive training to use the device, lowering labour costs and providing an efficient user experience for all authorised personnel.
